North American
OV-10C Bronco |
. |
|
Aircraft of the Royal Thai Air Force |
|
|
|
|
|
|
|
|
|
|
. |
 |
 |
|
|
|
|
|
|
|
|
|
. |
|
Development |
|
Entwicklung |
|
The North American Rockwell
OV-10 Bronco is an American twin-turboprop light attack and observation
aircraft. It was developed in the 1960s as a special aircraft for
counter-insurgency (COIN) combat, and one of its primary missions was as
a forward air control (FAC) aircraft. It can carry up to 1,450 kg of
external munitions and internal loads such as paratroopers or stretchers,
and can loiter for three or more hours.
A specification for the Light Armed Reconnaissance Aircraft (LARA) was
approved by the U.S. Navy, Air Force, and Army and was issued in late
1963. The LARA requirement was based on a perceived need for a new type
of "jungle fighting" versatile light attack and observation aircraft.
Existing military aircraft in the observation role, such as the Cessna
O-1 Bird Dog and O-2 Skymaster, were perceived as obsolescent, with too
slow a speed and too small a load capacity for this flexible role.
In August 1964, the NA-300 was selected. A contract for seven prototype
aircraft was issued in October 1964. The Bronco started flying midway
through the Charger's test program on 16 July 1965, and became one of
the premier counter-insurgency (COIN) aircraft of the next 30 years. |
|
Die North American Rockwell
OV-10 Bronco ist ein amerikanisches leichtes Angriffs- und
Beobacht-ungsflugzeug mit zwei Turboprops. Es wurde in den 1960er Jahren als
Spezialflugzeug für den Kampf gegen Aufständische (COIN) entwickelt, und
eine seiner Hauptaufgaben war die als Forward Air Control (FAC) Flugzeug. Es
kann bis zu 1.450 kg externe Munition und interne Lasten wie Fallschirmjäger
oder Tragen tragen und drei oder mehr Stunden lang herumlungern.
Eine Spezifikation für das Light Armed Reconnaissance Aircraft (LARA) wurde
von der U.S. Navy, Air Force und Army genehmigt und Ende 1963 veröffentlicht
Angriffs- und Be-obachtungsflugzeuge. Bestehende Militärflug-zeuge in der
Beobachtungsrolle, wie die Cessna O-1 Bird Dog und O-2 Skymaster, wurden als
veraltet angesehen, mit einer zu langsamen Ge-schwindigkeit und einer zu
geringen Tragfähigkeit für diese flexible Rolle.
Im August 1964 wurde der NA-300 ausgewählt. Ein Vertrag über sieben
Flugzeugprototypen wurde im Oktober 1964 ausgestellt. Der Bronco flog am 16.
Juli 1965 in der Mitte des Testprogramms des Charger und wurde eines der
führenden Flugzeuge zur Aufstandsbekämpfung (COIN) der nächsten 30 Jahre. |
|
|
|
|
|
|
|
|
|
. |
|
Variants |
|
Versionen |
|
OV-10C |
Export version for Thailand;
based on the OV-10A, 32 built. |
|
OV-10C |
Exportversion für Thailand;
basierend auf dem OV-10A, 32 gebaut. |
|
|
|
|
|
|
|
|
|
.. |
|
Operational
history |
|
Einsatzgeschichte |
|
The plane
is designated attackplane No. 5 (BJ.5
บจ.๕). |
|
Die Maschine
wird als Angriffsflugzeug No. 5 (BJ.5
บจ.๕)
bezeichnet. |
|
The first 16 OV-10C Bronco where ordered in 1970 and delivered in 1971 to the RTAF. The planes where
shipped on board the USS Okinawa in June 1971 to Cam Ranh Bay (Vietnam) and
then flown to Thailand. The 21 Sqn. 2. Wing in RTAFB Lopburi was
the first user of the Borocos.
..
The 2nd Batch of 16 OV-10C was delivered by air across the
Pacific by Skyways on 8. December 1974 and stationed at 53 Sqn.
5. Wing RTAFB Prachuab Khirikhan.
..
At this time (1975) the war against communist in the North and North-East of
Thailand was at the peak, therefore many OV-10 were sent to airbases in the
North and North-East. On 1. October 1977, all Lopburi's
OV-10C were transferred to Chiang Mai to set a new attack Sqn. there as 411
Sqn, 41 Wing.
In 1982, the RTAF set a new air wing at
Surat Thani, therefore the OV-10C from the 53 Sqn. were transferred to the
new Wing at Surat Thani. This new set up Sqn. is called as 711Sqn. 71Wing.
Their task was to protect Thai fishery and destroy communist target in the
South.
..
On the 24 September 1991 the RTAF made a reorganization. The 711 Sqn became an F-5E Tiger II Sqn. The Broncos from the 711 Sqn had to join
the 411 Sqn. at Chiang Mai. All OV-10C Broncos where withdrawn from service
on 7. April 2004.
..
8 surplus OV-10C were given to the Philippines AF and 9 will be kept in
Thailand ( 3 - Tango Sqd, 1 - RTAF Museum, 1 - Lop Buri, 1 – Prachuab
Khirikahn, 1 – Surat Thani and 1 - Chiang Mai)
|
|
Die
ersten 16 OV-10C Broncos wurden 1970 be-stellt und 1971 an die RTAF
geliefert. Die Flug-zeuge wurden an Bord der USS Okinawa im Juni 1971 nach Cam Ranh Bay (Vietnam) geliefert und dann
nach Thailand geflogen. Die 21 Staffel 2. Geschwader in RTAF Lopburi war der erste Benutzer der
Broncos.
Die
zweite Staffel von 16 OV-10C wurde durch die Firma Skyways am 8.
Dezember 1974 über den Pazifik geflogen und bei der 53 Staffel 5.
Geschwader in RTAFB Prachuab Khirikhan stationiert.
Zu dieser Zeit (1975) war der Kampf gegen die Kommunisten im Norden und
Nordosten auf einem Höhepunkt, deshalb wurden die OV-10 auf Basen im
Norden und Nordosten stationiert. Am 1. Oktober 1977 wurden alle OV-10C
aus Lopburi nach RTAFB Chiang Mai verlegt und gründeten die 411 Staffel
41. Geschwader.
Im
1982 stellte die RTAF ein neues Geschwader in RTAFB Surat Thani auf. Alle
OV-10C der 53 Staffel wurden nach Surat Thani zum neuen Geschwader
verlegt. Die neue Staffel nannte sich 711 Staffel 71 Geschwader, ihre
Aufgabe war es die Thailändische Fischerei zu beschützen und
Kommunistische Ziele im Süden zu zerstören.
Am
24 September 1991 machte die RTAF eine Reorganisation. Die 711 Staffel
wurde eine F-5E einheit. Die Broncos der 711 Staffel wurden an die 411
Staffel in Chiang Mai angegeben. Alle OV-10C Broncos wurden am 7. April
2004 ausser Dienst gestellt.
8 überzählige OV-10C wurden an die Philippinen abgegeben. 9 Maschinen
verbleiben in Thailand (3 - Tango-Staffel, 1 - RTAF Museum, 1 - Lop Buri, 1 – Prachuab
Khirikahn, 1 – Surat Thani and 1 - Chiang Mai)
|
|
|
|
|
|
|
|
|
|
. |
|
 |
 |
 |
|
21 Sqn. 2. Wing |
411 Sqn. 41. Wing |
411 Sqn. 41. Wing |
|
 |
 |
 |
|
411 Sqn. 41. Wing |
411 Sqn. 41. Wing |
411 Sqn. 41. Wing |
|
 |
 |
|
|
411 Sqn. 41. Wing |
411 Sqn. 41. Wing |
|
|
|
|
|
|
|
|
|
|
. |
|
Specifications |
OV-10C |
Wingspan |
Spannweite |
12,19
m |
Length |
Länge |
12,12
m |
Height |
Höhe |
4,62
m |
Wing
area |
Flügelfläche |
27,03
m² |
Engine |
Motor |
2
x Garret
T-76-G-10/12, 715
Hp |
Maximum
speed |
Höchstgeschwindigkeit |
452
km/h |
Empty
weight |
Leergewicht |
3.127
kg |
Loaded
weight |
Startgewicht |
6.552
kg |
Climb
Rate |
Steigrate |
? |
Service
ceiling |
Gipfelhöhe |
7.315
m |
Range |
Reichweite |
2.414
km |
Armament |
Bewaffnung |
4x 7,62 mm
MGs
Bobs up to 2'000 Kg |
Capacity |
Zuladung |
Crew 2 |
|
|
|
|
|
|
|
|
|
|
|
. |
|
Pictures |
|
Bilder |
|
 |
 |
 |
 |
|
|

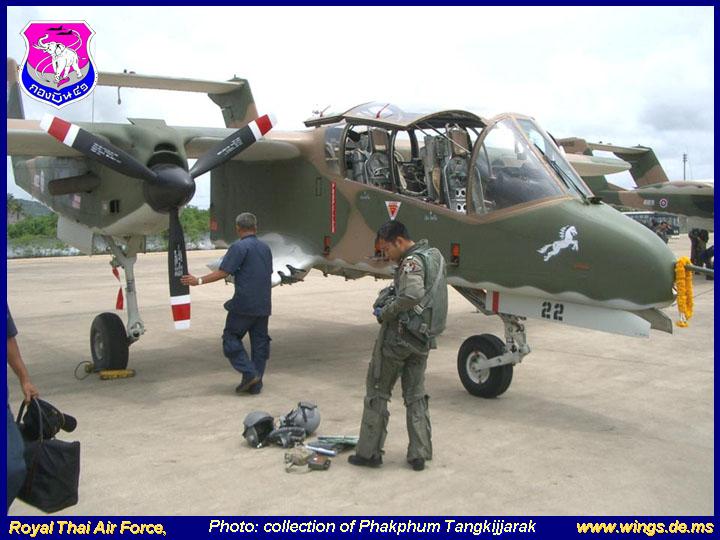

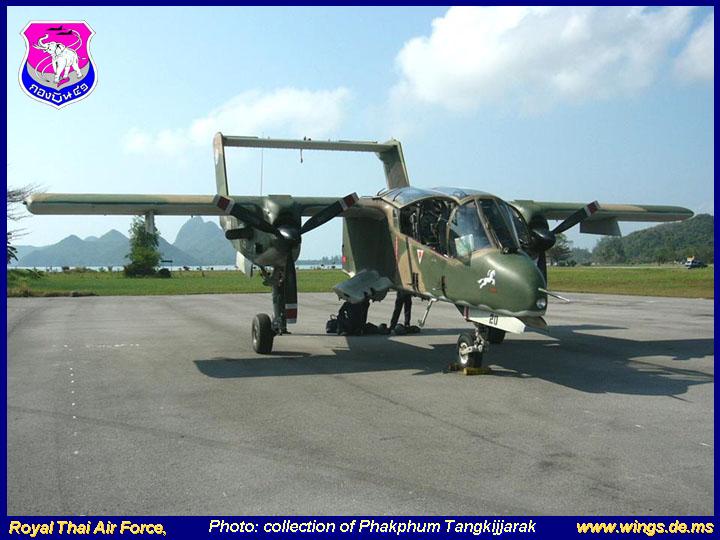

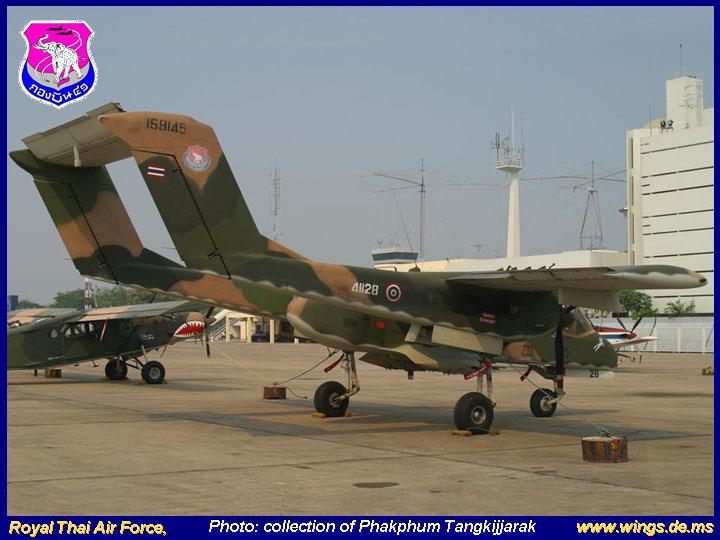

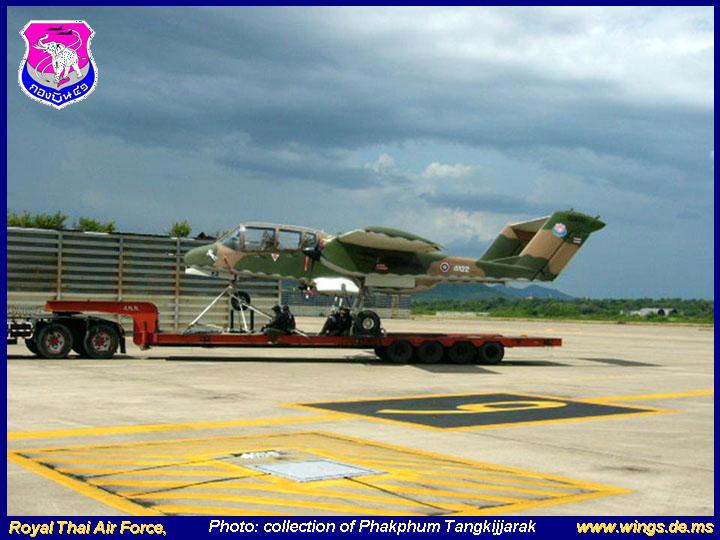

North
American OV-10C Bronco (Photo collection of Steve Penn)
|
North
American OV-10C Bronco (Photo collection of Steve Penn)
|
North
American OV-10C Bronco #41125 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #411204 (Photo courtesy of
Phakphum Tangkijjarak).
|
|
|
 |
 |
 |
 |
|
|
North
American OV-10C Bronco (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41101 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41106 (Photo courtesy of
Phakphum Tangkijjarak).
|
|
|
 |
 |
 |
 |
|
|
North
American OV-10C Bronco #41110 (Photo courtesy of
Phakphum Tangkijjarak).
|
OV-10C Bronco #41109
(Photo from the
collection of Phakphum Tangkijjarak)
|
North
American OV-10C Bronco #41120 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41104 (Photo courtesy of
Phakphum Tangkijjarak).
|
|
|
 |
 |
 |
 |
|
|

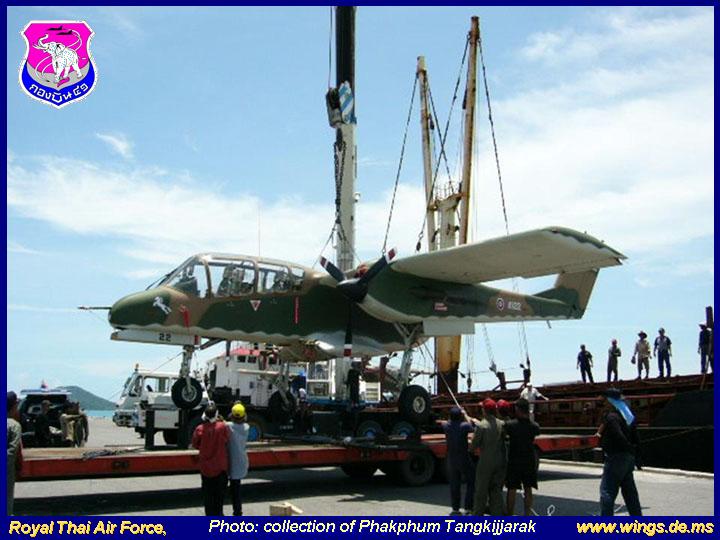

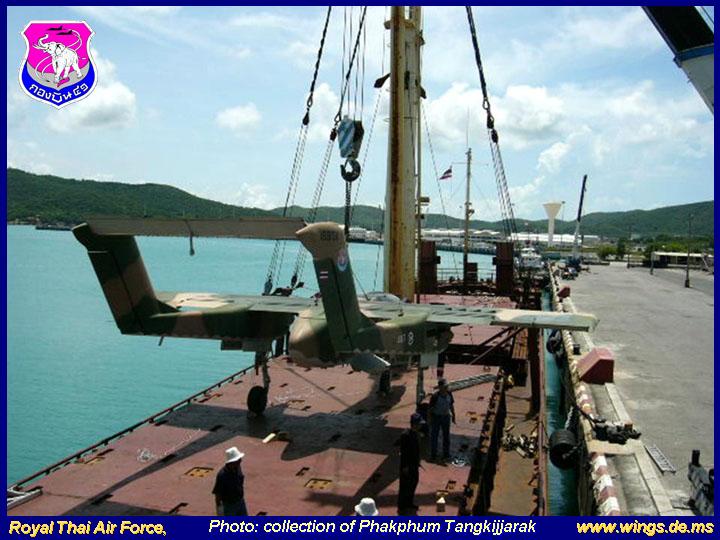

The Arrival in Thailand.(Photo courtesy of
Phakphum Tangkijjarak). |
North
American OV-10C Bronco #41111 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41114 (Photo courtesy of
Phakphum Tangkijjarak).
|
Broncos on the Flightline.
(Photo courtesy of
Phakphum Tangkijjarak). |
|
|
 |
 |
 |
 |
|
|
North
American OV-10C Bronco #41125 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41125 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41125 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41120 (Photo courtesy of
Phakphum Tangkijjarak).
|
|
|
 |
 |
 |
 |
|
|
North
American OV-10C Bronco #41109 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41119 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41117 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41109 (Photo courtesy of
Phakphum Tangkijjarak).
|
|
|
 |
 |
 |
 |
|
|
The weapons of the Bronco.
(Photo courtesy of
Phakphum Tangkijjarak). |
An Bronco with four Mk.82 bombs. (Photo courtesy of
Phakphum Tangkijjarak). |
Broncos on the Flightline.
(Photo courtesy of
Phakphum Tangkijjarak). |
Broncos on the Flightline.
(Photo courtesy of
Phakphum Tangkijjarak). |
|
|
 |
 |
 |
 |
|
|
North
American OV-10C Bronco #41116 (Photo courtesy of
Phakphum Tangkijjarak).
|
North
American OV-10C Bronco #41116 (Photo courtesy of
Phakphum Tangkijjarak).
|
North American OV-10C Bronco (Photo courtesy of
Phakphum Tangkijjarak).
|
The Pilots of
the 411 Sqn.(Photo courtesy of
Phakphum Tangkijjarak). |
|
|
|
|
|
|
|
|
|
|
. |
|
Serial North American OV-10C
Bronco |
Type |
Thai Serial |
Reg. |
s/n |
Delivered |
Withdrawn
|
Remarks |
OV-10C |
BJ.5-1/13 |
41101 |
342-001
/ 158396 |
Jun. 1971 |
May 2004 |
to
Tango Club |
OV-10C |
BJ.5-2/13 |
41102 |
342-002
/ 158397 |
Jun. 1971 |
3. Nov. 1975 |
w/o |
OV-10C |
BJ.5-3/14 |
41103 |
342-003
/ 158398 |
Jun. 1971 |
6. Apr. 1982 |
w/o |
OV-10C |
BJ.5-4/14 |
41104 |
342-004
/ 158399 |
Jun. 1971 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-5/14 |
41105 |
342-005
/ 158400 |
Jun. 1971 |
May 2004 |
- |
OV-10C |
BJ.5-6/14 |
41106 |
342-006
/ 158401 |
Jun. 1971 |
May 2004 |
- |
OV-10C |
BJ.5-7/14 |
41107 |
342-007
/ 158402 |
Jun. 1971 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-8/14 |
41108 |
342-008
/ 158403 |
Jun. 1971 |
1987 |
- |
OV-10C |
BJ.5-9/14 |
41109 |
342-009
/ 158404 |
Jun. 1971 |
May 2004 |
w/o |
OV-10C |
BJ.5-10/14 |
41110 |
342-010
/ 158405 |
Jun. 1971 |
May 2004 |
preserved
at RTAF
Museum |
OV-10C |
BJ.5-11/14 |
41111 |
342-011
/ 158406 |
Jun. 1971 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-12/14 |
41112 |
342-012
/ 158407 |
Jun. 1971 |
6. Oct. 1979 |
w/o |
OV-10C |
BJ.5-13/14 |
41113 |
342-013
/ 158408 |
Jun. 1971 |
22. Jul. 1988 |
w/o |
OV-10C |
BJ.5-14/14 |
41114 |
342-014
/ 158409 |
Jun. 1971 |
22. Mar.1994 |
w/o |
OV-10C |
BJ.5-15/14 |
41115 |
342-015
/ 158410 |
Jun. 1971 |
Nov. 1994 |
w/o |
OV-10C |
BJ.5-16/14 |
41116 |
342-016
/ 158411 |
Jun. 1971 |
May 2004 |
- |
OV-10C |
BJ.5-17/16 |
41117 |
360-001
/ 159134 |
Dec.
1974 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-18/16 |
41118 |
360-002
/ 159135 |
Dec.
1974 |
May 2004 |
- |
OV-10C |
BJ.5-19/16 |
41119 |
360-003
7 159136 |
Dec.
1974 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-20/16 |
41120 |
360-004
/ 159137 |
Dec.
1974 |
May 2004 |
- |
OV-10C |
BJ.5-21/16 |
41121 |
360-005
/ 159138 |
Dec.
1974 |
May 2004 |
- |
OV-10C |
BJ.5-22/16 |
41122 |
360-006
/ 159139 |
Dec.
1974 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-23/16 |
41123 |
360-007
/ 159140 |
Dec.
1974 |
Feb. 1977 |
w/o |
OV-10C |
BJ.5-24/16 |
41124 |
360-008
/ 159141 |
Dec.
1974 |
Jan 1977 |
w/o |
OV-10C |
BJ.5-25/16 |
41125 |
360-009
/ 159142 |
Dec.
1974 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-26/16 |
41126 |
360-010
/ 159143 |
Dec.
1974 |
Jan. 1980 |
w/o |
OV-10C |
BJ.5-27/16 |
41127 |
360-011
/ 159144 |
Dec.
1974 |
Jun. 1974 |
w/o |
OV-10C |
BJ.5-28/16 |
41128 |
360-012
/ 159145 |
Dec.
1974 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-29/16 |
41129 |
360-013
/ 159146 |
Dec.
1974 |
23. Sep. 1999 |
w/o |
OV-10C |
BJ.5-30/16 |
41130 |
360-014
/ 159147 |
Dec.
1974 |
20. Oct. 1988 |
w/o |
OV-10C |
BJ.5-31/16 |
41131 |
360-015
/ 159148 |
Dec.
1974 |
May 2004 |
to
Philippine AF |
OV-10C |
BJ.5-32/16 |
41132 |
360-016
/ 159149 |
Dec.
1974 |
Aug. 1975 |
w/o |
Last Update 20. December 2021 |
|
|
|
|
|
|
|
|
|
|
. |
|
Broncos for the Philippines |
|
|
 |
 |
 |
 |
|
|
 |
 |
 |
 |
|
|
 |
 |
 |
 |
|
|
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
|
. |
