Pilatus
P-3 |
. |
|
Aircraft of the Swiss Air Force |
|
|
|
|
|
|
|
|
|
|
. |
 |
 |
|
|
|
|
|
|
|
|
|
. |
|
Development |
|
Entwicklung |
|
The Pilatus P-3 was a
military training aircraft designed for primary and advanced training (including
night flying, aerobatics and instrument flying) built by Pilatus
Aircraft of Switzerland. It was of all-metal construction with a
retractable tricycle undercarriage and tandem seating. The first
prototype was built in 1953 and flew on 3 September, the same year. The
Swiss Air Force received 72 examples of this aircraft while the
Brazilian Navy acquired six. The Swiss Air Force used the P-3 as a
training aircraft until 1983, although it continued to be used as a
liaison aircraft for another decade. In 1993 – 1995, |
|
Die Pilatus P-3 war ein
militärisches Trainings-flugzeug für die Grund- und Weiterbildung
(ein-schliesslich Nachtflug, Kunstflug und Instrumenten-flug) von Pilatus Aircraft aus der Schweiz. Es war eine Ganzmetallkonstruktion mit einem
einzieh-baren Dreiradfahrwerk und Tandemsitzen. Der erste Prototyp wurde 1953
gebaut und flog am 3. Septem-ber desselben Jahres. Die Schweizer Luftwaffe
erhielt 72 Exemplare dieses Flugzeugs, die brasilianische Marine sechs. Die
Schweizer Luftwaffe setzte die P-3 bis 1983 als Trainings-flugzeug ein, wurde
aber noch ein weiteres Jahrzehnt als Verbindungsflugzeug eingesetzt.
1993 – 1995, |
|
|
|
|
|
|
|
|
|
. |
|
Variants |
|
Versionen |
|
P3-02 |
Prototype, one built |
|
P3-02 |
Prototyp, eine Maschine |
|
P3-03 |
first production version, 12
built |
|
P3-03 |
Erste Serienversion, 12 gebaut |
|
P3-05 |
Main version with detail
improvements, 66 built |
|
P3-05 |
Hauptversion mit
Detailverbes-serungen, 66 gebaut |
|
|
|
|
|
|
|
|
|
. |
|
Operational
history |
|
Einsatzgeschichte |
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
|
 |
 |
 |
|
Flugwaffe |
Flugwaffe |
Flugwaffe |
|
 |
|
|
|
Flugwaffe |
|
|
|
|
|
|
|
|
|
|
|
. |
|
Pictures |
|
Bilder |
|
 |
 |
 |
 |
.. |
|
Pilatus P-3
HB-HOO (Picture
courtesy collection Peter E. Kalt |
Pilatus
P-3-03 #A-815 (Photo courtesy
collection Phakphum Tangkijjarak)
|
Pilatus
P-3-03 #A-840 (Photo courtesy
collection Phakphum Tangkijjarak)
|
Pilatus
P-3-03 #A-818 (Photo courtesy
collection Phakphum Tangkijjarak)
|
.. |
|
 |
 |
 |
|
.. |
|
Pilatus
P-3-03 #A-865 (Photo courtesy
collection Phakphum Tangkijjarak) |
Pilatus
P-3-05 #A-801
(Photo courtesy of Michael E. Fader) |
Pilatus
P-3-02 #A-801
(Photo courtesy of Michael E. Fader) |
|
.. |
|
|
|
|
|
|
|
|
|
. |
|
Specifications |
P-3-03 |
Wingspan |
Spannweite |
10.40 m |
Length |
Länge |
8.75 m |
Height |
Höhe |
3.05 m |
Wing
area |
Flügelfläche |
16.55 m² |
Engine |
Motor |
1 x Lycoming
GO-435-C2-A2
6 Zyl. Boxermotor
240 PS |
Maximum
speed |
Höchstgeschwindigkeit |
310 km/h |
Empty
weight |
Leergewicht |
1,090 kg |
Loaded
weight |
Startgewicht |
1,500 kg |
Climb
Rate |
Steigrate |
7.0 m/s |
Service
ceiling |
Gipfelhöhe |
5,500 m |
Range |
Reichweite |
650 km |
Armament |
Bewaffnung |
none |
Capacity |
Zuladung |
Crew 2 |
|
|
|
|
|
|
|
|
|
|
|
. |
|
Pilatus
P3, Swiss Air Force |
Typ |
Buzz |
s/n |
Delivered |
Withdrawn
|
Remarks |
Typ |
Buzz |
s/n |
Delivered |
Withdrawn
|
Remarks |
P3-02 |
A-801 |
318 |
30.1.1956 |
26.7.1985 |
... |
P3-03 |
A-802 |
319 |
25.6.1956 |
27.11.1978 |
crashed
at Uvrier |
P3-03 |
A-803 |
320 |
26.6.1956 |
3.3.1991 |
... |
P3-03 |
A-804 |
321 |
16.7.1956 |
2.2.1991 |
... |
P3-03 |
A-805 |
322 |
7.8.1956 |
2.2.1991 |
... |
P3-03 |
A-806 |
323 |
20.9.1956 |
2.2.1991 |
... |
P3-03 |
A-807 |
324 |
8.10.1956 |
2.2.1991 |
... |
P3-03 |
A-808 |
325 |
12.10.1956 |
2.2.1991 |
... |
P3-03 |
A-809 |
326 |
6.11.1956 |
9.4.1991 |
... |
P3-03 |
A-810 |
327 |
26.11.1956 |
2.2.1991 |
... |
P3-03 |
A-811 |
328 |
12.12.1956 |
2.2.1991 |
... |
P3-03 |
A-812 |
329 |
12.12.1956 |
2.2.1991 |
... |
P3-03 |
A-813 |
330 |
28.12.1956 |
2.2.1991 |
... |
P3-05 |
A-814 |
452 |
5.5.1958 |
22.4.1995 |
... |
P3-05 |
A-815 |
453 |
29.5.1958 |
22.4.1995 |
... |
P3-05 |
A-816 |
454 |
10.7.1958 |
- |
... |
P3-05 |
A-817 |
455 |
22.10.1958 |
25.4.1992 |
... |
P3-05 |
A-818 |
456 |
17.7.1958 |
22.4.1995 |
... |
P3-05 |
A-819 |
457 |
25.7.1958 |
25.4.1992 |
... |
P3-05 |
A-820 |
458 |
8.8.1958 |
22.4.1995 |
... |
P3-05 |
A-821 |
459 |
11.8.1958 |
22.4.1995 |
... |
P3-05 |
A-822 |
460 |
20.8.1958 |
- |
... |
P3-05 |
A-823 |
461 |
12.9.1958 |
2.2.1991 |
... |
P3-05 |
A-824 |
462 |
5.9.1958 |
22.4.1995 |
... |
P3-05 |
A-825 |
463 |
18.9.1958 |
22.4.1995 |
... |
P3-05 |
A-826 |
464 |
12.9.1958 |
22.4.1995 |
... |
P3-05 |
A-827 |
465 |
3.10.1958 |
25.4.1992 |
... |
P3-05 |
A-828 |
466 |
8.10.1958 |
22.4.1995 |
... |
P3-05 |
A-829 |
467 |
8.10.1958 |
22.4.1995 |
... |
P3-05 |
A-830 |
468 |
29.10.1958 |
25.4.1992 |
... |
P3-05 |
A-831 |
469 |
11.10.1958 |
22.4.1995 |
... |
P3-05 |
A-832 |
470 |
5.11.1958 |
8.1.1985 |
crashed
at Dübendorf |
P3-05 |
A-833 |
471 |
7.11.1958 |
16.3.1973 |
crashed
at Druesberg |
P3-05 |
A-834 |
472 |
5.12.1958 |
22.4.1995 |
... |
P3-05 |
A-835 |
473 |
9.12.1958 |
2.2.1991 |
... |
P3-05 |
A-836 |
474 |
11.12.1958 |
2.2.1991 |
... |
P3-05 |
A-837 |
475 |
31.12.1958 |
25.4.1992 |
... |
P3-05 |
A-838 |
476 |
10.1.1959 |
- |
... |
P3-05 |
A-839 |
477 |
10.1.1959 |
22.4.1995 |
... |
P3-05 |
A-840 |
478 |
19.1.1959 |
2.2.1991 |
... |
P3-05 |
A-841 |
479 |
26.1.1959 |
- |
... |
P3-05 |
A-842 |
480 |
2.2.1959 |
22.4.1995 |
... |
P3-05 |
A-843 |
481 |
9.2.1959 |
22.8.1963 |
crashed
into river Ticino near Magadino |
P3-05 |
A-844 |
482 |
17.2.1959 |
22.4.1995 |
... |
P3-05 |
A-845 |
483 |
12.4.1959 |
22.4.1995 |
... |
P3-05 |
A-846 |
484 |
5.3.1959 |
25.4.1992 |
... |
P3-05 |
A-847 |
485 |
5.3.1959 |
22.4.1995 |
... |
P3-05 |
A-848 |
486 |
17.3.1959 |
- |
... |
P3-05 |
A-849 |
487 |
13.4.1959 |
2.2.1991 |
... |
P3-05 |
A-850 |
488 |
14.4.1959 |
25.4.1992 |
... |
P3-05 |
A-851 |
489 |
4.5.1959 |
22.4.1995 |
... |
P3-05 |
A-852 |
490 |
5.5.1959 |
22.4.1995 |
... |
P3-05 |
A-853 |
491 |
25.5.1959 |
25.4.1992 |
... |
P3-05 |
A-854 |
492 |
9.6.1959 |
14.10.1968 |
crashed
near San Vittore |
P3-05 |
A-855 |
493 |
12.6.1959 |
25.4.1992 |
... |
P3-05 |
A-856 |
494 |
12.6.1959 |
2.2.1991 |
... |
P3-05 |
A-857 |
495 |
30.6.1959 |
25.4.1992 |
... |
P3-05 |
A-858 |
496 |
25.6.1959 |
2.5.1985 |
crash
landing near Interlaken |
P3-05 |
A-859 |
497 |
3.7.1959 |
25.4.1992 |
... |
P3-05 |
A-860 |
498 |
10.7.1959 |
25.4.1992 |
... |
P3-05 |
A-861 |
499 |
13.7.1959 |
- |
... |
P3-05 |
A-862 |
500 |
3.8.1959 |
2.2.1991 |
... |
P3-05 |
A-863 |
501 |
11.8.1959 |
25.4.1992 |
... |
P3-05 |
A-864 |
502 |
7.8.1959 |
22.4.1995 |
... |
P3-05 |
A-865 |
503 |
27.8.1959 |
22.4.1995 |
... |
P3-05 |
A-866 |
504 |
10.9.1959 |
25.4.1992 |
... |
P3-05 |
A-867 |
505 |
27.8.1959 |
25.4.1992 |
... |
P3-05 |
A-868 |
506 |
2.9.1959 |
25.4.1992 |
... |
P3-05 |

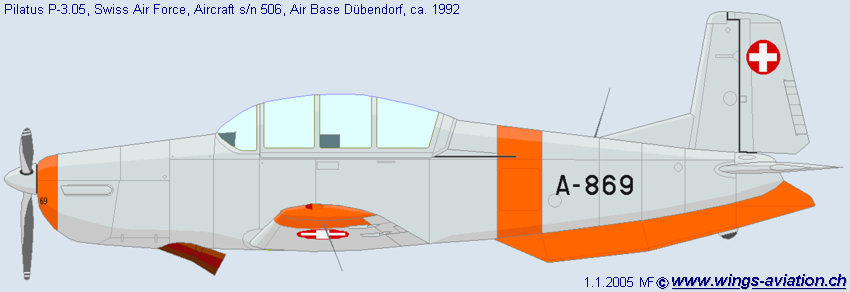

A-869 |
507 |
11.9.1959 |
25.4.1992 |
... |
P3-05 |
A-870 |
508 |
22.9.1959 |
2.2.1991 |
... |
P3-05 |
A-871 |
509 |
24.9.1959 |
26.3.1982 |
Rebuild
to an PC-7 |
P3-05 |
A-872 |
510 |
1.10.1959 |
25.4.1992 |
... |
P3-05 |
A-873 |
511 |
27.10.1959 |
22.4.1995 |
... |
|
|
|
|
|
|
|
|
|
|
|
. |
