NZAI (later PAC) CT/4 Air Trainer

 .
Aircraft of the Royal Thai Air Force
.

                  .

Development

Entwicklung



 The Pacific Aerospace Corporation CT/4 Airtrainer series is an all-metal-construction, single-engine, two-place with side-by-side seating, fully aerobatic, piston-engined, basic training aircraft manufactured in Hamilton, New Zealand.

The Airtrainer design is of cantilever low-wing monoplane configuration, with a fixed tricycle landing gear. It has interconnected ailerons and flaps, with both systems functioning as both ailerons and as flaps when operated. The nosewheel was steerable. The CT/4 prototype first flew on 23 February 1972. A total of 155 aircraft had been built by 2024.		   Die CT/4 Airtrainer-Serie der Pacific Aerospace Corporation ist ein vollständig aus Metall gefertigtes, einmotoriges, zweisitziges, voll kunst-flugtaugliches Basistrainerflugzeug mit Kolben-motor, das in Hamilton, Neuseeland, hergestellt wird.
Das Design des Airtrainers ist eine freitragende Tiefdecker-Konfiguration mit einem festen Dreirad-fahrwerk. Es verfügt über miteinander verbundene Querruder und Klappen, wobei beide Systeme bei Betätigung sowohl als Querruder als auch als Klappen fungieren. Das Bugrad war lenkbar. Der Prototyp des CT/4 flog erstmals am 23. Februar 1972. Bis 2024 wurden insgesamt 155 Flugzeuge gebaut.
                  .

Variants

Versionen
  CT/4A Powered by a 210 hp Continental piston engine. The initial production design.   CT/4A Angetrieben von einem 210 PS starken Continental-Kolbenmotor. Das anfängliche Serienmaschine.
  CT/4B A version of the CT/4A with minimal changes to suit the RTAF   CT/4B Eine Version des CT / 4A mit minimalen Änderungen für die RTAF
  CT/4E Powered by a 300 hp Lycoming and with a three-bladed propeller and the wing moved 5 cm rearwards to compensate for the altered centre of gravity.   CT/4E Angetrieben von einem 300 PS starken Lycoming und einem Dreiblatt-Propeller. Der Flügel wurde um 5 cm nach hinten verschoben, um den veränderten Schwerpunkt auszugleichen.
..

Operational history

Einsatzgeschichte



 24 CT-4A where delivered in 1973/74 to the RTAF. The primary Trainer was used by the 1.  FTS at RTAFB Kamphaeng Saen. In 1992 6 CT-4B where procured. The replacement of the CT-4A and B was the CT-4E from wich it 1999 16 where delivered and 8 more in 2005.  The CT-4E ist the Primary Trainer of the RTAF, the CT-4A/B where now in use of the 604 Sqn 6th Wing RTAFB Don Muang.   24 CT-4A wurden 1973/74 an die RTAF geliefert. Der Basis-Trainer wurde von der 1. FTS in RTAFB Kamphaeng Saen verwendet. 1992 wurdem 6 CT-4B gekauft. Der Ersatz der CT-4A und B erfolgte 1999 mit der Lieferung von 16 CT-4E und weiteren 8 im 2005. Die CT-4E ist der Basis-Trainer der RTAF, die CT-4A/B wird heute von der 604 Staffel 6te Wing in RTAFB Don Muang verwendet.


The CT4A and B where designated Trainingplane No. 16 (BF.16 บฝ.๑๖) and the CT/4E (BF.16A บฝ.๑๖ก) Trainingplane No. 16A.



Die CT/4A und B wird als Trainingsflugzeug No.  16 (BF.16 บฝ.๑๖) und die CT/4E als (BF.16A บฝ.๑๖ก) Trainingsflugzeug No. 16A bezeichnet.
.





  Flying Training School Flying Training School Flying Training School





  Flying Training School Flying Training School 604 Squadron







604 Squadron 604 Squadron 604 Squadron






604 Squadron Flying Training School Flying Training School







Flying Training School
.

Specifications CT/4A

Wingspan

Spannweite

 7.90 m

Length

Länge

 7.00 m

Height

Höhe

 2.60 m
Wing area Flügelfläche 11.98 m2

Engine

Motor

 1× Teledyne Continental IO-360-HB9 piston engine,
210 hp

Maximum speed

Höchstgeschwindigkeit

 426 km/h

Empty weight

Leergewicht

 780 kg

Loaded weight

Startgewicht

 1,202 kg

Climb Rate

Steigrate

 ?

Service ceiling

Gipfelhöhe

 ?

Range

Reichweite

 1,112 km

Armament

Bewaffnung

 none

Capacity

 Zuladung 1 passengers
..

Pictures

Bilder
CT/4A BF.16-1/16 60432 (Photo collection of Phakphum Tangkijjarak). CT/4A BF.16-7/17 60436  (Photo collection of Phakphum Tangkijjarak). CT/4A BF.16-24/18 60445  (Photo collection of Phakphum Tangkijjarak). A flight of CT/4A from the 604 Sqn. (Photo collection of Phakphum Tangkijjarak).
CT/4A BF.16-22/18 (Photo collection of Phakphum Tangkijjarak).

CT-4A BF.16-17/17 (Photo collection of Phakphum Tangkijjarak).

CT-4A BF.16-17/17 (Photo collection of Phakphum Tangkijjarak).

CT-4A BF.16-4/17 60434 from the 604 Sqn 6th Wing RTAFB Don Muang (Photo collection of Phakphum Tangkijjarak).

CT-4A BF.16-4/17 60434 from the 604 Sqn 6th Wing RTAFB Don Muang (Photo collection of Phakphum Tangkijjarak).

CT-4A BF.16-13/17 60438 from the 604 Sqn 6th Wing RTAFB Don Muang  (Photo collection of Phakphum Tangkijjarak).

CT-4A BF.16-24/18 here in New Zealand as ZK-DTU  (Photo collection of Phakphum Tangkijjarak). CT-4A ZK-DTY became later BF.16-22/18 and is now serving with 604 Sqn in Don Muang
CT-4A BF.16-15/17 (Photo collection of Phakphum Tangkijjarak). CT-4A BF.16-15/17 (Photo collection of Phakphum Tangkijjarak). CT-4A F16-020/18  (Photo collection of Phakphum Tangkijjarak). The last CT-4A BF.16-24/18 (Photo collection of Phakphum Tangkijjarak).
CT-4A BF.16-22/18  (Photo collection of Phakphum Tangkijjarak). CT-4A BF.16-23/18 RR-014  (Photo collection of Phakphum Tangkijjarak). CT-4A BF.16-11/17 with a different paint scheme  (Photo collection of Phakphum Tangkijjarak). CT-4A BF.16-014/17 (Photo from the collection of Phakphum Tangkijjarak).

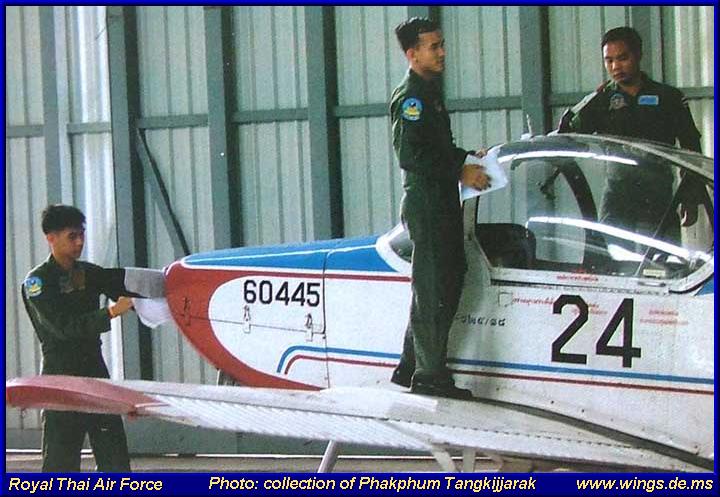

CT-4A BF.16-24/18  (Photo collection of Phakphum Tangkijjarak). A flight of nine CT-4A (Photo collection of Phakphum Tangkijjarak). CT-4A BF.16-08/17  (Photo collection of Phakphum Tangkijjarak). CT-4B BF.16-26/35 from the FTS in RTAF Kamphang Saen (Photo collection of Phakphum Tangkijjarak).
CT-4B BF.16-27/35 from the FTS in RTAF Kamphang Saen (Photo collection of Phakphum Tangkijjarak). (Photo collection of Phakphum Tangkijjarak). (Photo collection of Phakphum Tangkijjarak). ZK-PTN was the first CT/4E (BF.16A-1/42) (Photo collection of Phakphum Tangkijjarak).

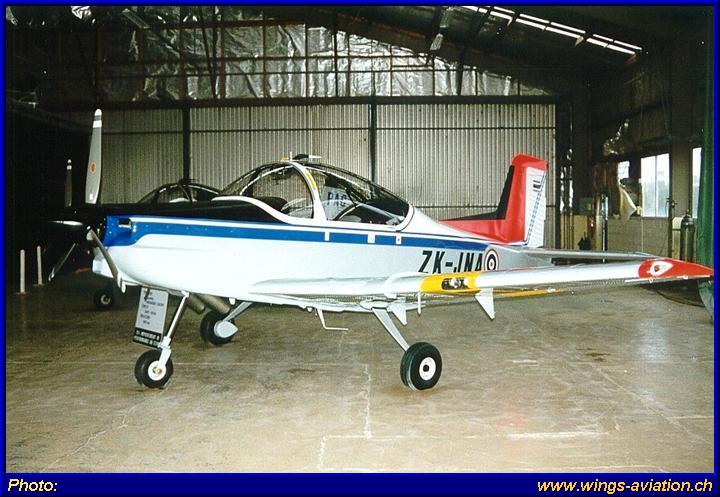

CT/4E BF.16A-15/44 (former ZK-JNA) (Photo from the collection of Phakphum Tangkijjarak) CT/4E ZK-DTY(Photo collection of Phakphum Tangkijjarak). CT/4E BF.16A-16/44 as ZK-JNB (Photo collection of Phakphum Tangkijjarak). A picture fom 2001 when CT/4E BF.16A-15/44 was still ZK-JNA (Photo collection of Phakphum Tangkijjarak).
CT/4E BF.16A-11/43 as RR.11 (Photo collection of Phakphum Tangkijjarak). CT/4E BF.16A-16/44 (Photo collection of Phakphum Tangkijjarak). CT/4E BF.16A-8/43 (Photo collection of Phakphum Tangkijjarak). CT/4E  BF.16A-6/42 (Photo collection of Phakphum Tangkijjarak).

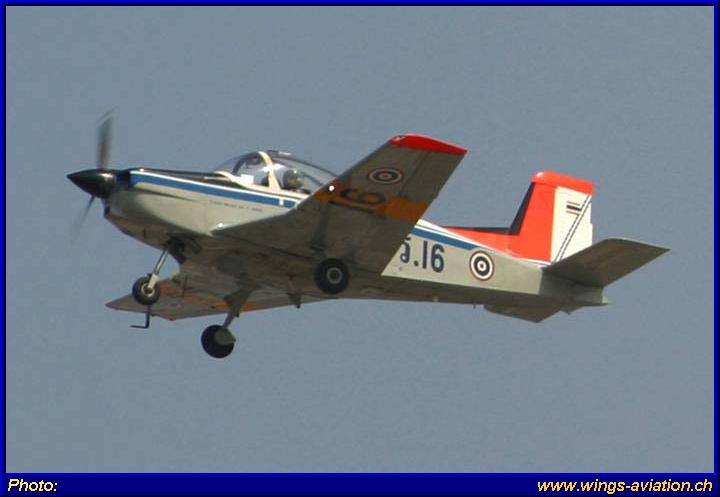

CT/4E BF.16A-9/43 from the FTS in RTAF Kamphang Saen.
.

Serial, NZAI CT-4A & B
Type

Thai Serial

Reg.

s/n

Delivered

Withdrawn

Remarks
CT/4A BF.16-1/16 60432 CT4-003 13. Nov. 1973 present -
CT/4A BF.16-2/17 60433 CT4-004 15. Feb. 1974 present -
CT/4A BF.16-3/17 RR.003 CT4-005 7. Mar. 1974 1980 -
CT/4A BF.16-4/17 60434 CT4-006 21. Mar. 1974 present -
CT/4A BF.16-5/17 60435 CT4-007 10. Apr. 1074 present -
CT/4A BF.16-6/17 RR.006 CT4-008 30. Mar. 1974 17. Oct. 2002 Crashed
CT/4A BF.16-7/17 60436 CT4-009 23. Mar. 1974 present -
CT/4A BF.16-8/17 RR.008 CT4-010 8. Jun. 1974 1984 -
CT/4A BF.16-9/17 RR.009 CT4-011 25. Jun. 1974 1984 -
CT/4A BF.16-10/17 RR.010 CT4-012 25. Jun. 1974 1988 -
CT/4A BF.16-11/17 60437 CT4-013 12. Jul. 1974 present -
CT/4A BF.16-12/17 RR.010 CT4-015 29. Jul. 1974 present -
CT/4A BF.16-13/17 60438 CT4-016 8. Aug. 1974 present -
CT/4A BF.16-14/17 RR.014 CT4-017 19. Aug. 1974 15. Oct. 1998 Crashed
CT/4A BF.16-15/17 60439 CT4-018 6. Aug. 1974 present -
CT/4A BF.16-16/17 RR.016 CT4-019 24. Aug. 1974 present -
CT/4A BF.16-17/17 60440 CT4-023 30. Sep. 1974 present -
CT/4A BF.16-18/17 RR.018 CT4-024 16. Oct. 1974 present -
CT/4A BF.16-19/17 60441 CT4-026 11. Dec. 1974 present -
CT/4A BF.16-20/18 60442 CT4-020 2. Nov. 1974 30. Aug. 2018 Preserved in the RTAF Museum
CT/4A BF.16-21/18 RR.021 CT4-022 1. Nov. 1974 present -
CT/4A BF.16-22/18 60443 CT4-025 6. Dec. 1974 present -
CT/4A BF.16-23/18 60444 CT4-014 20. Jan. 1975 present -
CT/4A BF.16-24/18 60445 CT4-021 1. Nov. 1974 present -
CT/4B BF.16-25/35 RR.025 CT4-109 29. Feb. 1992 present -
CT/4B BF.16-26/35 RR.026 CT4-110 1. Apr. 1992 present -
CT/4B BF.16-27/35 RR.027 CT4-111 29. Apr. 1992 present -
CT/4B BF.16-28/35 RR.028 CT4-112 29. Apr. 1992 present -
CT/4B BF.16-29/35 RR.029 CT4-113 29. Apr. 1992 1996 Crashed ?
CT/4B BF.16-30/35 RR.030 CT4-114 29. Apr. 1992 present -
.

Serial, NZAI CT-4E
Type

Thai Serial

Reg.

s/n

Delivered

Withdrawn

Remarks
CT/4E BF.16A-1/42 RR.1 CT4-214 1. Jul. 1999 present -
CT/4E BF.16A-2/42 RR.2 CT4-215 22. Jul. 1999 present -
CT/4E BF.16A-3/42 RR.3 CT4-217 30. Sep. 1999 present -
CT/4E BF.16A-4/42 RR.4 CT4-218 29. Nov. 1999 present -
CT/4E BF.16A-5/42 RR.5 CT4-219 12. Dec. 1999 present -
CT/4E BF.16A-6/42 RR.6 CT4-220 23. Dec. 1999 18. Jan. 2006 Crashed
CT/4E BF.16A-7/43 RR.7 CT4-221 9. Mar. 2000 present -
CT/4E BF.16A-8/43 RR.8 CT4-222 30. Mar. 2000 present -
CT/4E BF.16A-9/43 RR.9 CT4-223 27. Apr. 2000 17. Jun. 2010 Crashed
CT/4E BF.16A-10/43 RR.10 CT4-224 7. Mai. 2000 present -
CT/4E BF.16A-11/43 RR.11 CT4-225 15. Mai. 2000 present -
CT/4E BF.16A-12/43 RR.12 CT4-226 20. Mai. 2000 present -
CT/4E BF.16A-13/44 RR.13 CT4-227 5. Mai. 2001 present -
CT/4E BF.16A-14/44 RR.14 CT4-228 17. Jun. 2001 8. Jan. 2005 Crashed
CT/4E BF.16A-15/44 RR.15 CT4-229 23. Jun. 2001 present -
CT/4E BF.16A-16/44 RR.16 CT4-230 4. Aug. 2001 present -
CT/4E BF.16A-17/47 RR.17 CT4-233 14. May 2004 present -
CT/4E BF.16A-18/47 RR.18 CT4-234 1. Jul. 2004 present -
CT/4E BF.16A-19/47 RR.19 CT4-235 24. Aug. 2004 present -
CT/4E BF.16A-20/47 RR.20 CT4-236 1. Oct. 2004 present -
CT/4E BF.16A-21/47 RR.21 CT4-237 11. Nov. 2004 present -
CT/4E BF.16A-22/47 RR.22 CT4-238 12. Dec. 2004 present -
CT/4E BF.16A-23/48 RR.23 CT4-239 3. Mar. 2005 present -
CT/4E BF.16A-24/48 RR.24 CT4-240 3. Mar. 2005 present -
..

Mishaps

Unfälle
  1996
BF.16-29/35		 Wreck noted Jan96
  15. Oct. 1998
BF.16-14/17		 Caught fire and crashed at Kamphaeng Saen; 2 killed
  17. Oct. 2002
BF.16-6/17		 Crashed into coconut plantation after engine failure in Bang Khonthi district, Samut Songkhram; 1 killed; 1 injured.
.
  15. Jul. 2004
BF.16A-??/??		 Crashed into sugar cane field in Phnom Thuan district, Kanchanaburi province following engine failure; 2 killed
  8. Jan. 2005
BF.16A-14/44		 Crashed on take-off from Watthana Nakhon, Sakeo during Children’s Day display; 2 killed
  18. Jan. 2006
BF.16A-6/42		 Crashed onto building in Bang Pla Ma district, Supanburi province; 1 killed (Flt Lt Nawin Pinprasert)
  17. Jun. 2010
BF.16A-9/43		 Crashed into field about 1100 in Moo 2 village of Tambon Donchedi, Phanom Thuan district; 2 injured (Flight Lt. Pitchaya Pa-obthip and Wing Commander Akkarayothin Wanchadok)
19. Feb. 2014
BF.16A-18/47		 Forced landing near Khampaeng Saen; 2 crew uninjured
