Grumman EA-6 Prowler
Aircraft of the U.S. Marines Corps
Entwicklung
Ordered
Bestellt
Versionen

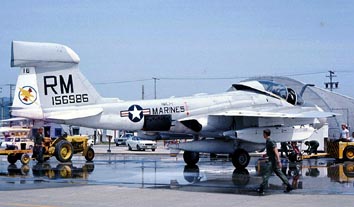

EA-6A
ECM version of the Intruder
EA-6A
ECM Version der Intruder
Einsatzgeschichte
O
G
Zeichnungen
Marine Composite Reconnaissance Squadron
Marine Tactical Electronic Warfare Squadrons
| Specifications |
EA-6B |
|
|
Wingspan |
Spannweite |
16.15 m |
|
Length |
Länge |
17.7 m |
|
Height |
Höhe |
4.9 m |
|
Wing area |
Flügelfläche |
49.15 m² |
|
Engine |
Motor |
2 × Pratt & Whitney J52-P408A turbojet, 10,400 lbf each |
|
Maximum speed |
Höchstgeschwindigkeit |
1,050 km - h |
|
Empty weight |
Leergewicht |
15,130 kg |
|
Loaded weight |
Startgewicht |
27,900 kg |
|
Climb Rate |
Steigrate |
65 m - s |
|
Service ceiling |
Gipfelhöhe |
11,500 m |
|
Range |
Reichweite |
3,861 km |
|
Armament |
Bewaffnung |
2 x AGM-88 HARM Anti-radiation missiles |
| Serials, Grumman EA-6 Prowler | ||
| EA-6A | 156979 - 156993 | 15 |
| EA-6A | 151828 - 151839 | (12) |
| EA-6B | 154930 - 154934 | 5 |
| EA-6B | 154935 - 154942 | (8) |
|
EA-6B |
156478 - 156482 | 5 |
| EA-6B | 156604 - 156607 | (4) |
| EA-6B | 157977 - 157979 | (3) |
|
EA-6B |
158029 - 158040 | 11 |
|
EA-6B |
158540 - 158547 | 8 |
|
EA-6B |
158649 - 158651 | 3 |
|
EA-6B |
158799 - 158817 | 9 |
|
EA-6B |
159582 - 159587 | 6 |
|
EA-6B |
159907 - 159912 | 6 |
|
EA-6B |
160432 - 160437 | 6 |
|
EA-6B |
160609 | 1 |
|
EA-6B |
160704 - 160709 | 6 |
|
EA-6B |
160786 - 160791 | 6 |
|
EA-6B |
161115 - 161120 | 6 |
|
EA-6B |
161242 - 161247 | 6 |
|
EA-6B |
161347 - 161352 | 6 |
|
EA-6B |
161774 - 161779 | 6 |
|
EA-6B |
161880 - 161885 | 6 |
|
EA-6B |
162223 - 162230 | 8 |
| EA-6B | 162231 - 162246 | (16) |
|
EA-6B |
162934 - 162939 | 6 |
| EA-6B | 162940 - 162941 | (2) |
|
EA-6B |
163030 - 163035 | 6 |
|
EA-6B |
163044 - 163049 | 6 |
|
EA-6B |
163395 - 163406 | 12 |
|
EA-6B |
163520 - 163531 | 12 |
|
EA-6B |
163884 - 163892 | 9 |
| EA-6B | 164182 - 164193 | (12) |
|
EA-6B |
164401 - 164403 | 3 |
|
Total |
179 |
|
