Fast Attack Craft

 .

Ships of the Royal Thai Navy

 .
.

Chonburi class, large patrol boats

Displacement: 400 tons standard, 450 tons full load
Dimensions: 60.4 x 8.8 x 1.95 m (198 x 29 x 6 feet)
Propulsion: 2 MTU diesels (20V538 TB91), 12,600 bhp
Speed: 30 kts Shaft: 2 shafts
Crew: 42 Range:
Radar: 3RM Sonar:
EW: Fire Control: W22/61
Armament:

2 x 76 mm OTO Melara DP

2 x dual 40mm/70 AA Breda/Bofors

2 x 12.7 mm MG
Builder:

CN Breda of Venice (Italia)

Design:

MV400 type

Ships:

FAC-331 HMTS Chonburi,  FAC-332 HMTS Songkhla,  FAC-333 HMTS Phuket






FAC-331 HMTS Chonburi
Laid down: ?
Launched: 7. Juli 1982
Commissioned RTN 1982
Decommissioned RTN


FAC-332 HMTS Songkhla
Laid down: ?
Launched: 6. September 1982
Commissioned RTN 1983
Decommissioned RTN


FAC-333 HMTS Phuket
Laid down: ?
Launched: ?
Commissioned RTN 1984
Decommissioned RTN


Pictures / Bilder
.
FAC-311 HMTS Prabrarapak (Photo courtesy of  Tangkijjarak Phakphum) FAC-311 HMTS Prabrarapak (Photo courtesy of  Tangkijjarak Phakphum) FAC-311 HMTS Prabrarapak (Photo courtesy of  Tangkijjarak Phakphum) FAC-311 HMTS Prabrarapak (Photo courtesy of  Tangkijjarak Phakphum) .
.

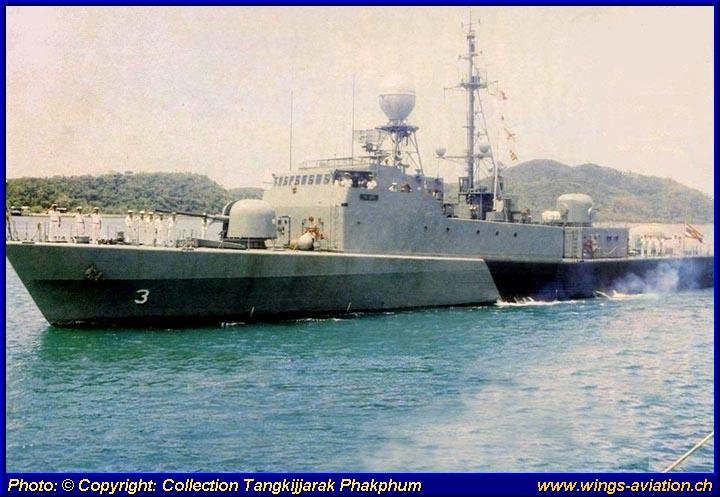

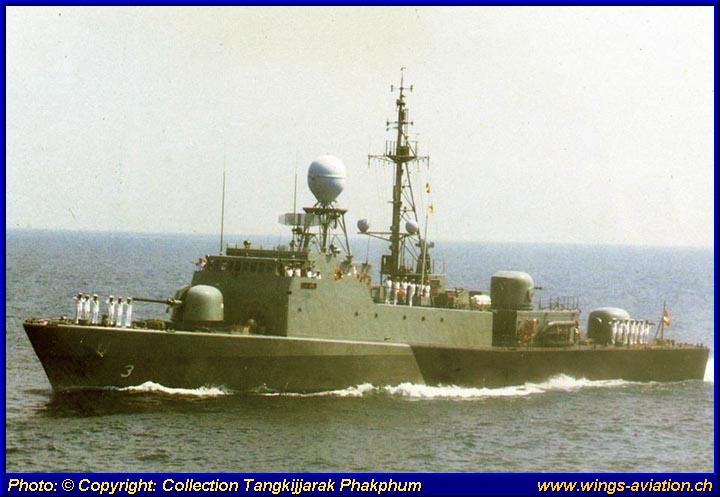

FAC-332 HMTS Songkhla (Photo courtesy of  Tangkijjarak Phakphum) FAC-333 HMTS Phuket (Photo courtesy of  Tangkijjarak Phakphum) FAC-333 HMTS Phuket (Photo courtesy of  Tangkijjarak Phakphum) FAC-333 HMTS Phuket (Photo courtesy of  Tangkijjarak Phakphum) .
  .

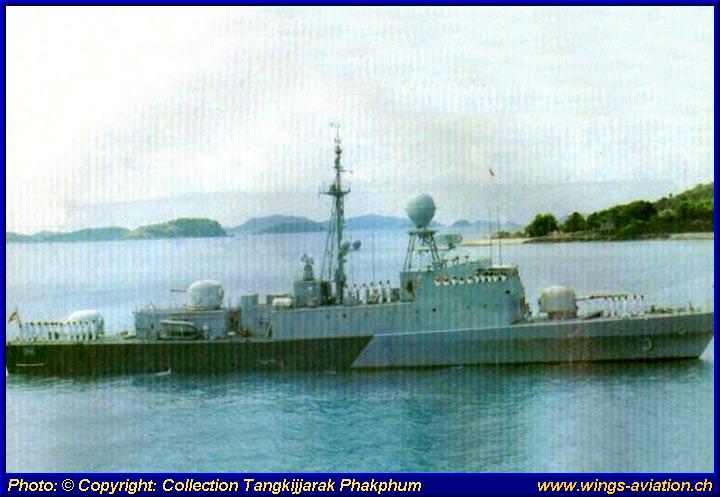

FAC-333 HMTS Phuket (Photo courtesy of  Tangkijjarak Phakphum) FAC-333 HMTS Phuket (Photo courtesy of  Tangkijjarak Phakphum) FAC-333 HMTS Phuket (Photo courtesy of  Tangkijjarak Phakphum)   .

-
